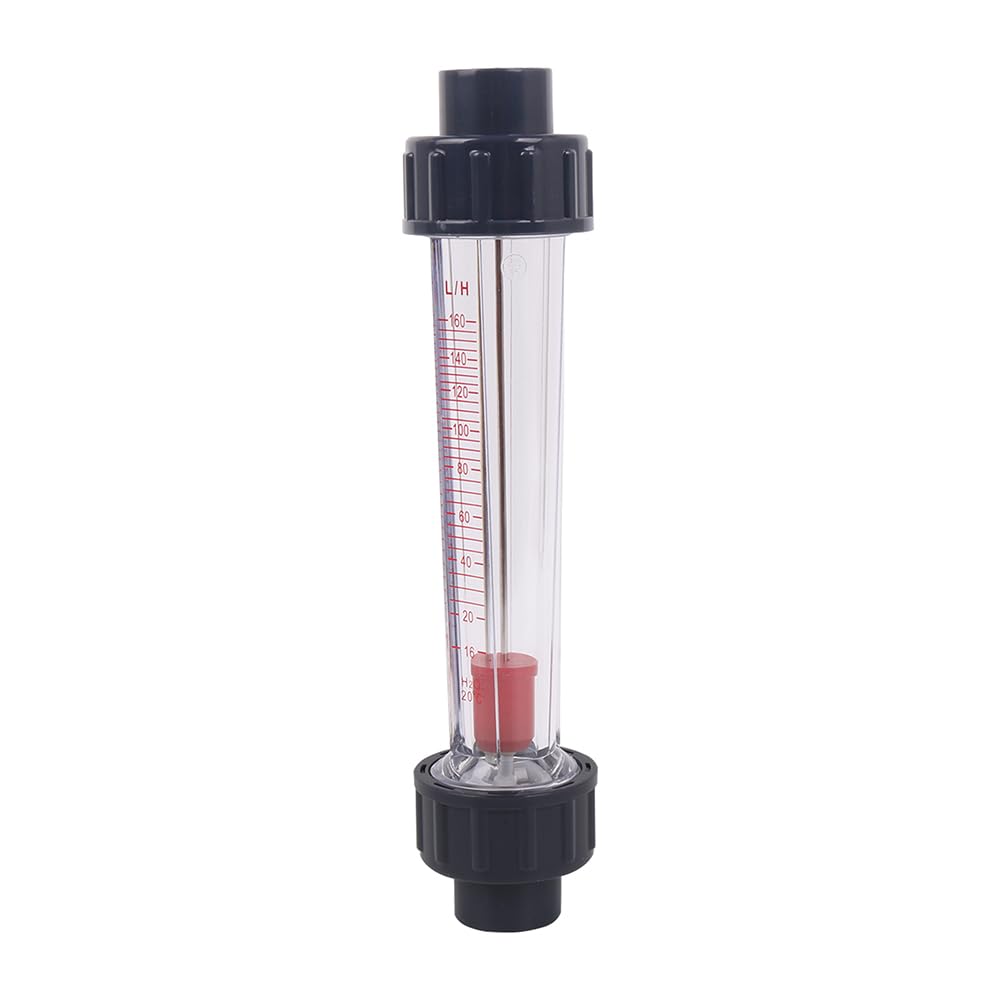

Inline Liquid Flowmeter, Fluids Flowmeter with AS Plastic Cylindrical Body Works with DN25 1" Pipe Connection (250~2500L/H)

SPECIFICATIONS For Use With: Liquids Calibrated With: Water Calibration Media Specific Gravity: 1 Display Type: Scale Mounting Style: Inline Mounting Orientation: Vertical Pipe Connections: DN25 1" Pipe Flow Measurement Type: Variable Area Flow Measurement Scale: Liter per Hour Flow Range: 250 to 2500 L/H Overall Height: 235mm Accuracy: ±4% Maximum Pressure: 0.6Mpa Temperature Range: 0~60°C Body Material: AS Plastic Fitting Material: ABS Plastic Features: Union Fittings 【Warning Message】 Liquids compatibility must be determined by the customer based on the conditions in which the product is being used; including the presence of other chemicals, temperature, and consistency.

• 【Flow Range】This liquid flowmeter comes in flow range: 250 to 2500 L/H. As liquid flows through, it pushes an indicator up the scale, showing you the flow rate within the flow range
• 【Inline Fluids Flowmeter】Inline variable area flowmeters measure the flow rate of liquids traveling through a system. Inline flowmeters are installed level with the system's piping, where media travels directly through the instrument
• 【Vertical Mount】Mount this flowmeter vertically inline with your pipe system, so liquid flows up from the bottom. As your liquid flows through, it pushes an indicator up the scale, showing you the flow rate
• 【Clear AS Plastic】To avoid metal contaminating liquids, such as deionized water, these flowmeters are made entirely of plastic and rubber. The clear AS plastic body and easy-to-see red scale marks help you to read the scale clearly
• 【Other Liquids】This flowmeter is calibrated using water but can be used with other liquids. If you’re using these with a liquid other than water, you’ll need to calculate the flow rate by multiplying the number shown on the scale by the specific-gravity conversion factor for your liquid
• 【Versatile Application 】This flowmeter is widely used in applications with limited space, minimize the impact on system line pressure, and require minimal plumbing alterations
