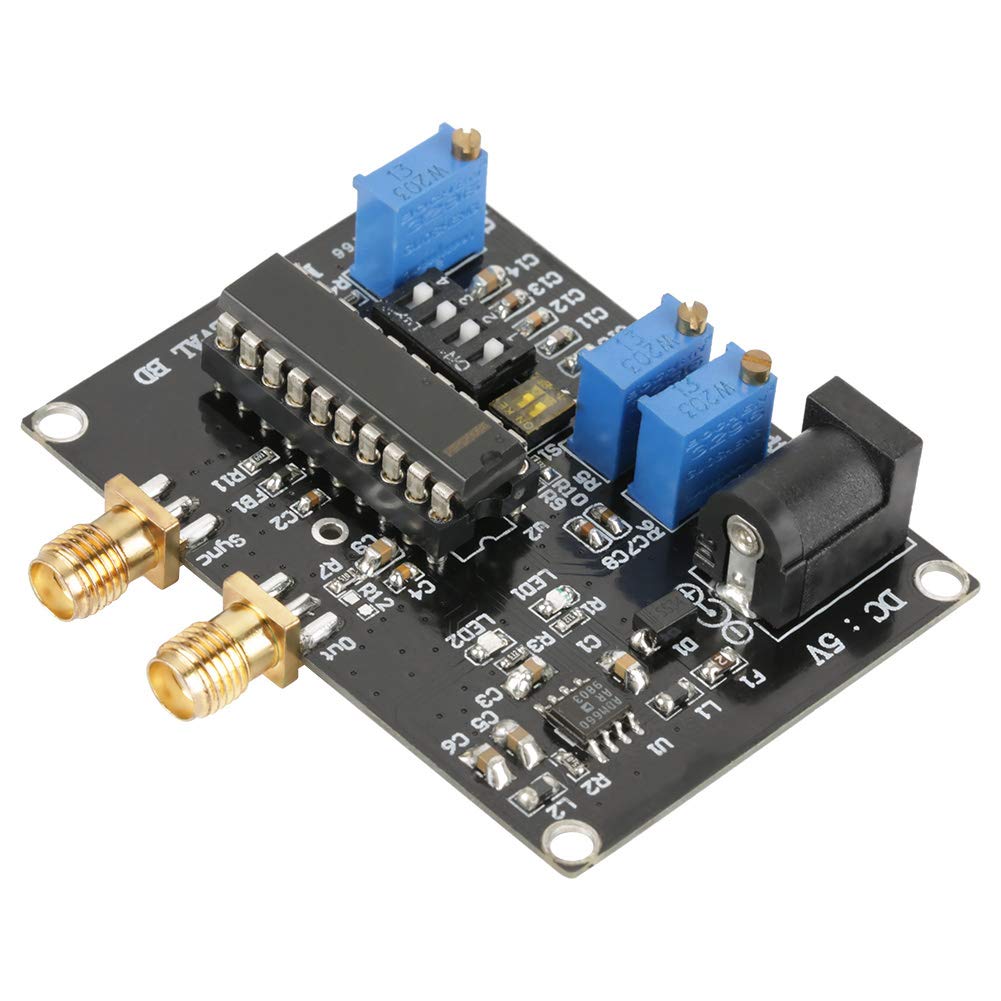

Function Generator, MAX038 Small High Frequency Precision Function Generator Module, Triangular/Sine/Rectangular/Pulse Wave Output, 0.1Hz - 20MHz

Features: The MAX038 is a high-frequency, precision function generator producing accurate, high-frequency triangle, sine, square, and pulse waveforms The output frequency can be adjusted by the four-digit digital switch Output waveform can be set by 2-digit digital switch The frequency and duty ratio can be adjusted by potentiometer Distortion can be adjusted by potentiometer 0.1Hz to 20MHz Operating Frequency Range Independent Frequency and Duty-Cycle Adjustments 350 : 1 Frequency Sweep Range, 15% ~85% Variable Duty Cycle Low-Impedance Output Buffer: 0.1Ω, Low-Distortion Sine Wave: 75%, Low 200ppm/°C Temperature Drift With TTL/CMOS compatible output, can be used to synchronize external devices Specifications: Power supply: +5V@0.1A (single power supply) Working frequency: 0.1Hz ~ 20MHz Controllable duty ratio:15%-85% Weight: 19g Package includes: 1 x MAX038 Module

• The MAX038 is a high-frequency, precision function generator producing accurate, high-frequency triangle, sine, square, and pulse waveforms

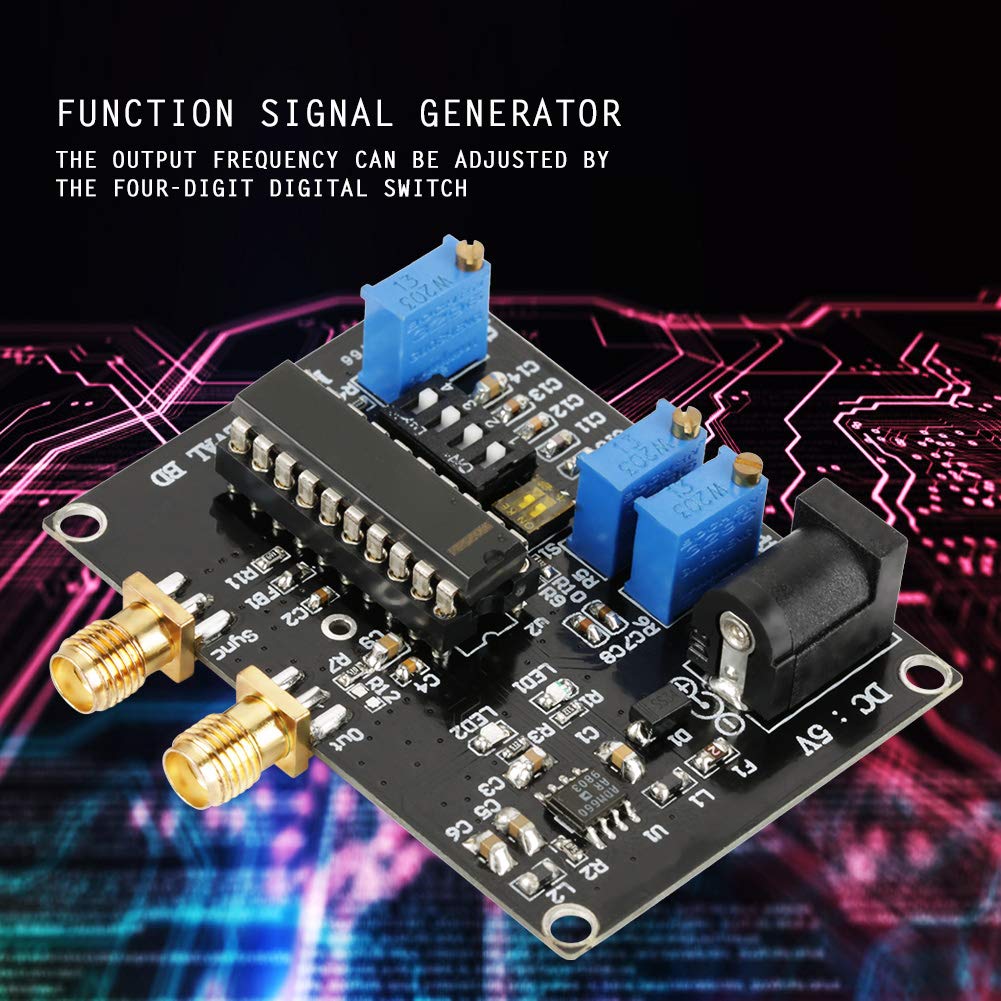

• The output frequency can be adjusted by the four-digit digital switch
• Output waveform can be set by 2-digit digital switch
• The frequency and duty ratio can be adjusted by potentiometer
• Distortion can be adjusted by potentiometer
