HKS Boost Controller Power Editor Subaru Levorg VM4 FB16 14/06-20/11 POWER EDITOR 42018-AF001

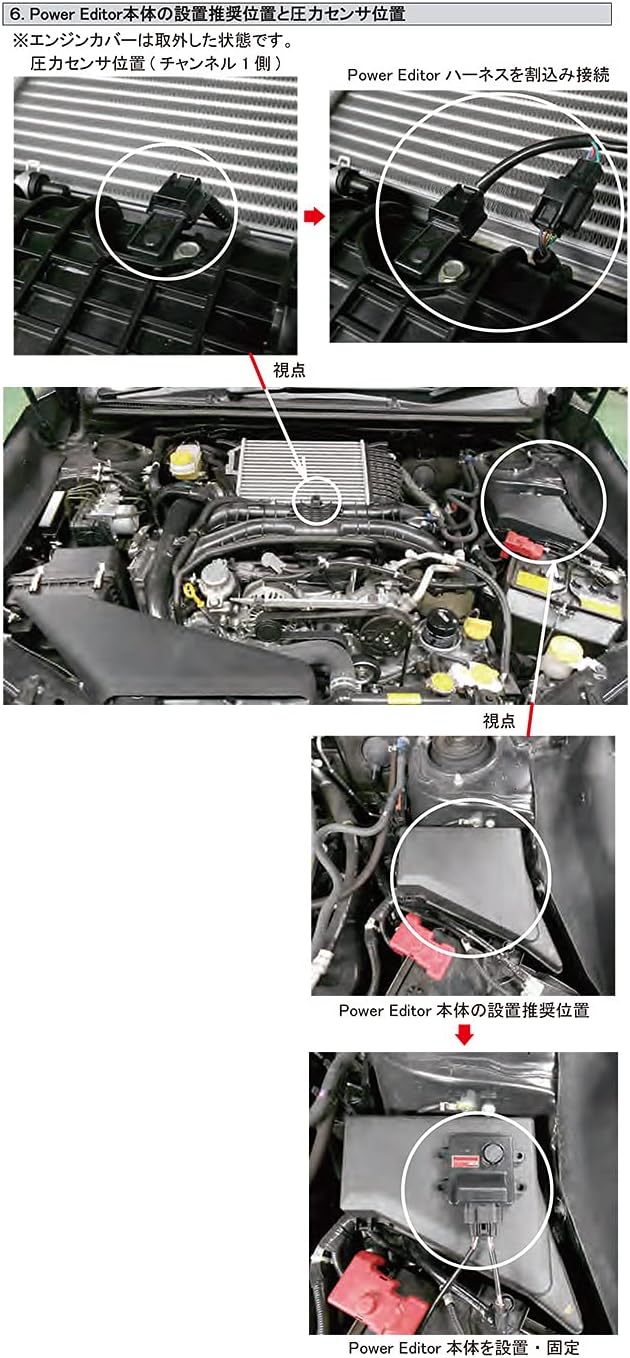

■Overview Easy to boost up with coupler on. After installing this product (after wired), you can return it to normal condition by using the return connector included with the product. With Easy Writer for Power Editor, you can change your boost up data. The Easy Writer for Power Editor is not included with the product. You can use it download from HKS homepage. Connect to a computer using the USB connection harness included with the product. ■Main Features Turbo Vehicle Boost Up: Function to Boost Up Original Vehicles (Genuine Turbine Equipped) Status Check LED: The function to check the condition of the unit via the LED. Boost Up Data Rewrite: Function to change to user's original Boost Up data Windows computer (Windows 10, 8.1, 8, 7) is required. ■Main Features Boost up by inserting the Power Editor between the vehicle's "pressure sensor" and "pressure sensor harness". For customers who are unsatisfied with the preset data on the body, we have prepared Easy Writer for Power Editor to change boost-up data. Connect your Power Editor unit to your PC with the USB connection harness included in the product to change the boost up data edited with Easy Writer for Power Editor. You can return to normal state by connecting the "return connector" included in the product instead of the Power Editor body. This makes it easy to see the difference between normal and boost-up states. ■ [Caution] Compatible with normal vehicles and HKS products mounted vehicles. Genuine ECU data compatible. It does not support custom data such as ReFlash tools.

• It is easy to boost up the coupler on turbos with electric or negative pressure controlled actuators that cannot be controlled with conventional Boost Controllers
• [Compatibility] Subaru Revogue Model: VM4 Engine: FB16 Year: 14/06-20/11. *Please check the manufacturer HP for the latest compatibility information
• With an improved power and torque range of engine revolutions between 2,000 rpm to 4,000 rpm, you can experience a wide range of runs
• [Caution] Compatible with normal vehicles and vehicles with HKS products. It also supports genuine ECU data, so it is not compatible with custom data using ReFlash tools
