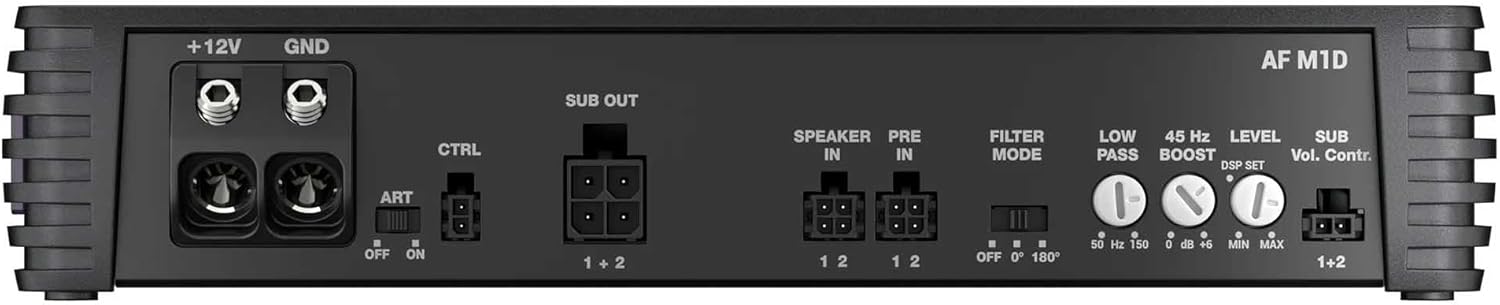

Audison Forza AF M1D D Class Mono Amplifier - 1 x 600W at 4Ω

AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven. Technical Specification POWER SUPPLY Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35 A Pulse operating voltage: 6.5 ÷ 17.5 VDC Idling current: 1.3 A Standby current draw: 0.005 mA Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 65 A Remote IN: 4 ÷15 VDC (1 mA) Remote OUT: 6.5 ÷15 VDC (150 mA) ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81% AMPLIFIER STAGE Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.1% Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140 Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 105 dBA Minimum load impedance: 1 Ω Output Continuous Power (RMS) @14.4 VDC, 1% THD: 1Ch @ 4Ω: 600 W, 1Ch @ 2Ω: 1000 W, 1Ch @ 1Ω: 1200 W CEA SPECIFICATIONS Output power @ 4Ω, 1% THD+N, 14.4 V: 600 W SN ratio (ref. 1 W output): 80,5 dBA INPUTS / OUTPUTS / FILTERS Inputs: Pre-In / Speaker-In Input sensitivity Pre-In: 0.6 ÷ 6 VRMS Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS SUB remote Volume Control (optional): ±12 dB GENERAL REQUIREMENTS Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F) SIZE / WEIGHT Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14 Weight (kg/lb): 2.04 / 4.49

• Enjoy the improved audio performance of the latest generation Audison D-Class technology.
• Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
• Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
