20 Pack Frameless Full Overlay Soft Close Concealed Hinges, Satin Nickel, Self Closing, 105° Open Angle 3D Adjustment, Stop 85 ＆ 105 Degrees, Clip On, Stainless Steel for Cabinet Door
Product details
| Management number | 208218350 | Release Date | 2026/03/22 | List Price | $15.60 | Model Number | 208218350 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

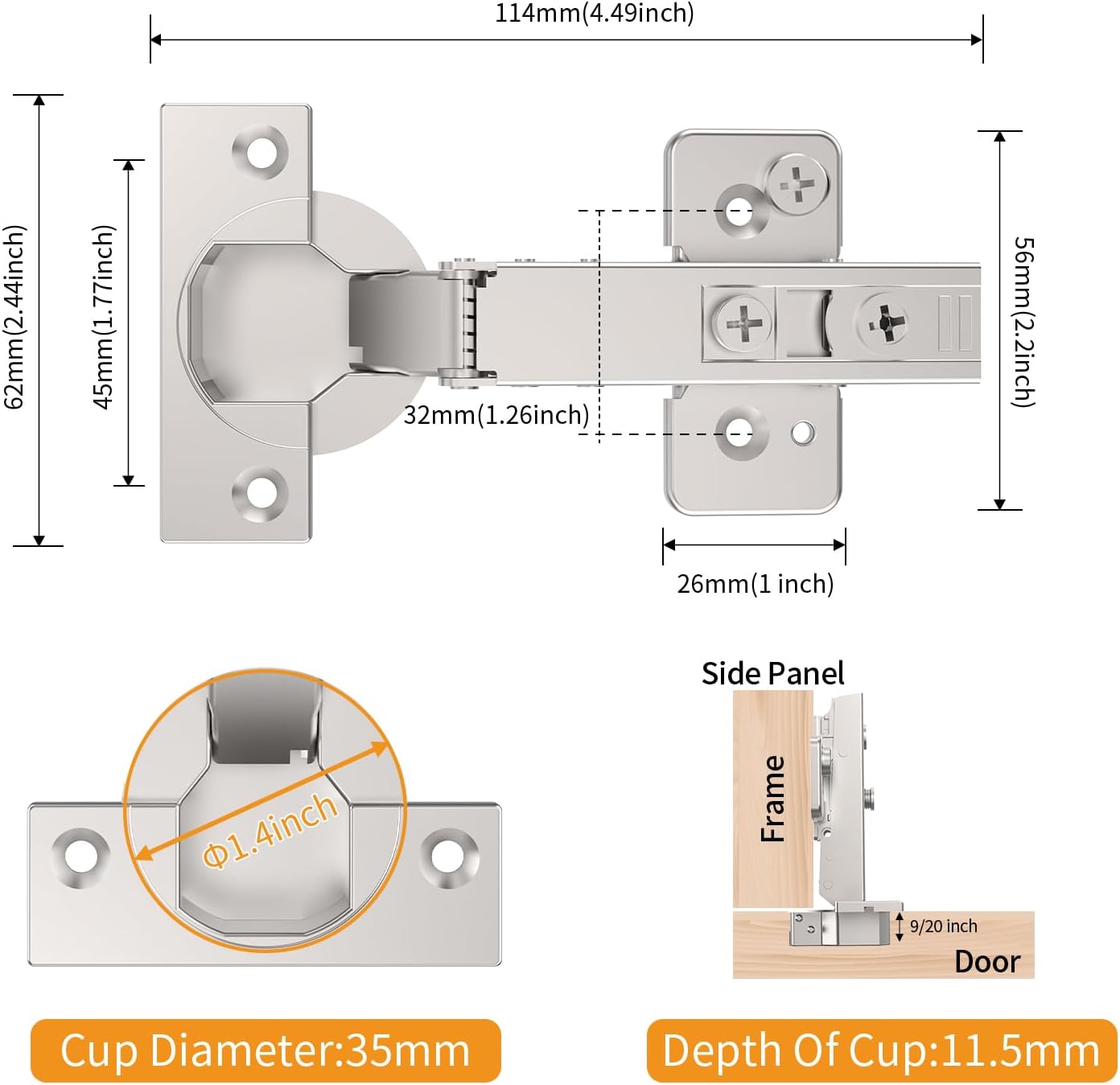

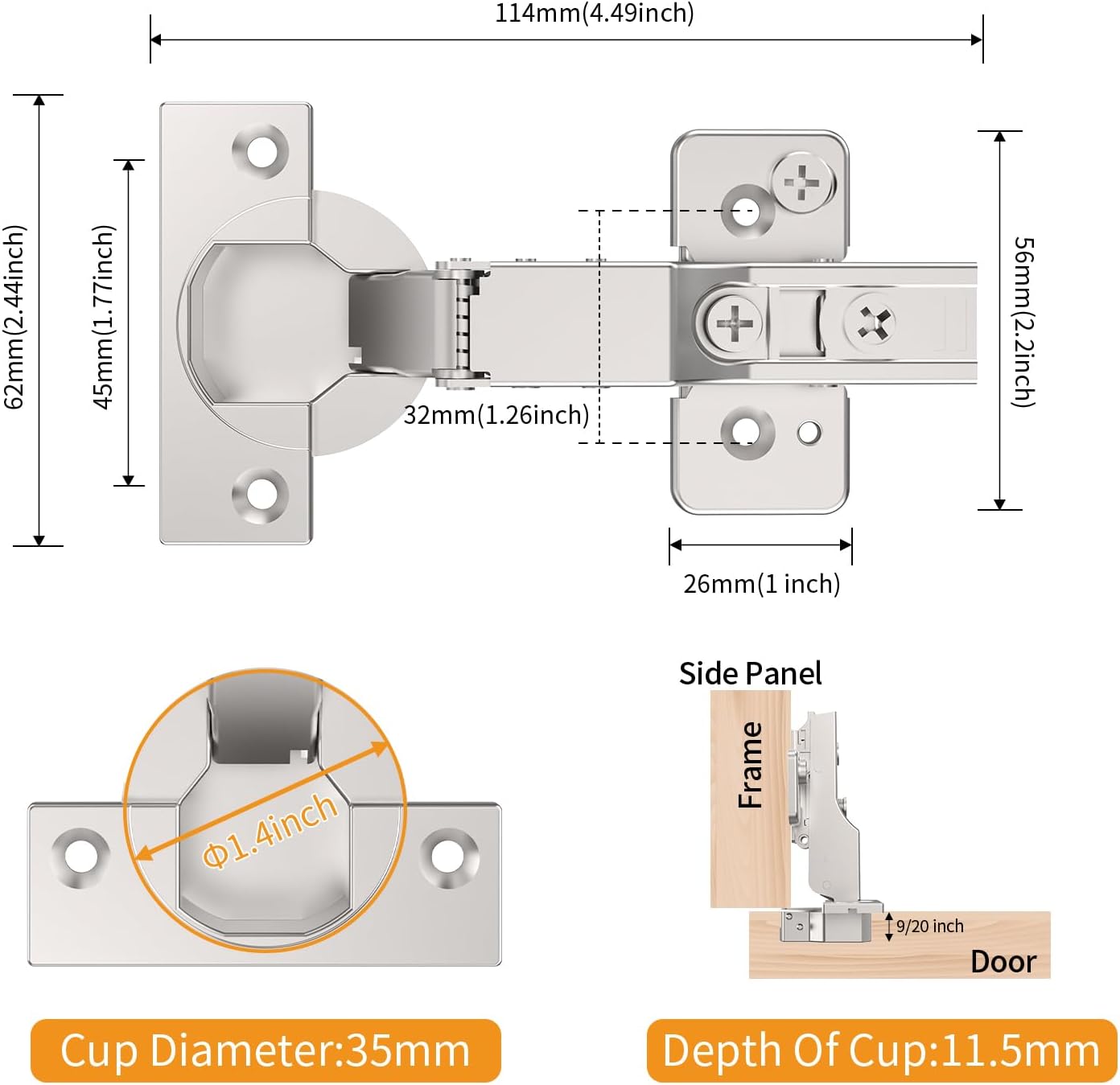

- Installation Specification - Cup depth: 11.5mm; Screw holes distance: 45mm; Opening angle: 85 ＆ 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge comes with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a perfect fit. Each euro style concealed kitchen cabinet hinge is fit for full overlay doors on frameless cabinets.
- SOFT CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.
- Two Open Angles for Versatility - The cabinet door hinges can stop at 85° or 105° when opened. This means that when your cabinet door is close to a wall, you don't need angle clips and you can still open it at different angles as needed.
- 3D Adjustable Upgrade - 3D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly.

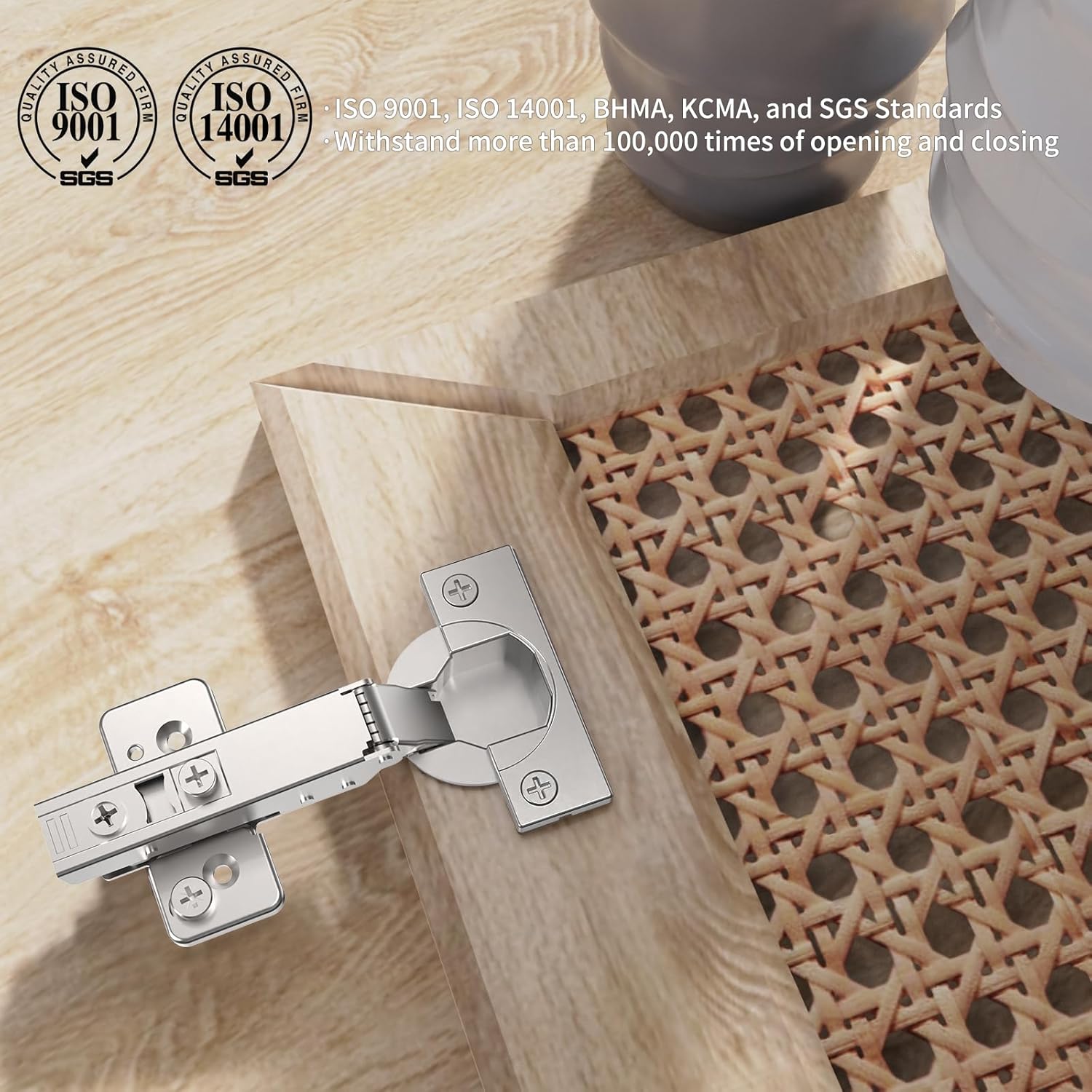

- High Quality and Reliable - Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The hinge can withstand more than 100,000 times of opening and closing and can withstand 48 hours of salt spray test. If you encounter any problems during use, feel welcome to connect with us at any time. We will provide the most attentive service.
| Size | Full Overlay |
|---|---|
| Brand | Chibery |
| Color | Satin Nickel |
| Style | Frameless |
| Usage | Full Overlay Frameless Type Cabinet Doors. Such as Kitchen cabinet doors, Bathroom cabinet doors, Wardrobes, TV cabinets, Bookcases, Wine cabinets, and other Luxury door connections. |
| Finish | Satin |
| Material | Stainless Steel |
| Hole Count | 80 |
| Unit Count | 20.0 Count |
| Finish Type | Satin |
| Item Weight | 5.24 pounds |
| Manufacturer | Chibery |
| Mounting Type | Door Mount |
| Number Of Pieces | 20 |
| Item model number | d7327cf2-d74b-43b8-aa8c-b863215e4a56 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 8.03 x 5.71 x 5.63 inches |
| Included Components | Easy-on dowels X 40, Self-tapping wooden screws X 80, Full Overlay Hinges X 20 |
| Item Package Quantity | 20 |
